GASKETS & Info for 1928-1934 Ford four Cylinder Model "A" and "B" engines.
IMPORTANT
OUR GASKET BOX CAN HOLD UP TO 3 GASKETS FOR ONE SHIPPING COST
Save BIG on shipping for each additional HEAD gasket.
GASKETS & Info for 1928-1934 Ford four Cylinder Model "A" and "B" engines.
IMPORTANT
OUR GASKET BOX CAN HOLD UP TO 3 GASKETS FOR ONE SHIPPING COST
Save BIG on shipping for each additional HEAD gasket.

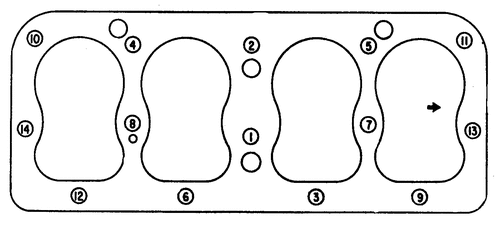

Image above is the correct torque sequence for all
Model A and B cylinder head gaskets.
NOBODY WANTS TO REPLACE A HEAD GASKET -
THE INFO AT BOTTOM OF PAGE
WILL HELP YOU STAY ON THE ROAD
Model A and B cylinder head gaskets.
NOBODY WANTS TO REPLACE A HEAD GASKET -
THE INFO AT BOTTOM OF PAGE
WILL HELP YOU STAY ON THE ROAD
$39.95 + ship
temporarily out of stock
should be back in stock within a few days
temporarily out of stock
should be back in stock within a few days

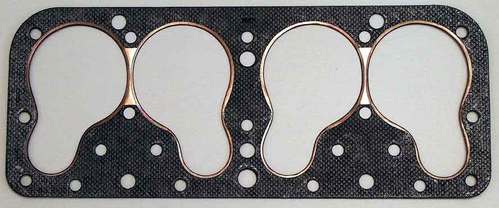

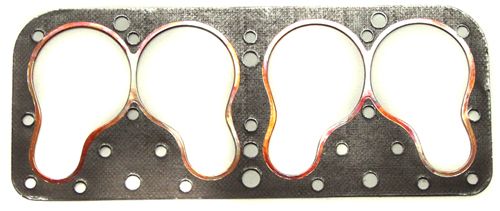

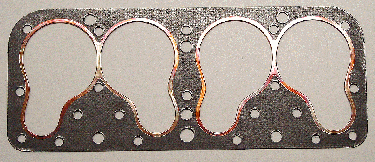

Four Cylinder A & B - Head Gasket
FOR HIGH COMPRESSION PERFORMANCE ENGINES
$39.95 + ship
IN STOCK
FOR HIGH COMPRESSION PERFORMANCE ENGINES
$39.95 + ship
IN STOCK
Fits Model A and B engines with up to 4" bore. Compression ratio up to 8:1 CR. This gasket is the only head gasket we recommend.
It lasts longer and leaks less. Compresses to about .042".
Recommended Torque is 55 foot-pounds.
Higher torque settings can warp cylinders.
It lasts longer and leaks less. Compresses to about .042".
Recommended Torque is 55 foot-pounds.
Higher torque settings can warp cylinders.
$80.00 each
ROOF 101 CYCLONE
"F" OHV Head Gasket
+ ship
IN STOCK
Fits Model A and B engines with up to 4" bore with OHV conversions.
Fits Roof 101 Cyclone.
May fit other OHV 4 cylinder "F" head engines.
"Best" brand.
Same specs as the flathead gaskets.
Does NOT fit Riley Two Port or Riley Four Port heads.
"F" OHV Head Gasket
+ ship
IN STOCK
Fits Model A and B engines with up to 4" bore with OHV conversions.
Fits Roof 101 Cyclone.
May fit other OHV 4 cylinder "F" head engines.
"Best" brand.
Same specs as the flathead gaskets.
Does NOT fit Riley Two Port or Riley Four Port heads.
$145.00 each
RILEY TWO PORT OHV
HEAD GASKET
FITS ORIGINAL AND YAPP R2P HEADS
carbon fiber/steel core/copper fire rings
HAND MADE BY BEST GASKET Co.
$145.00 each + ship
IN STOCK
513-724-9000
HEAD GASKET
FITS ORIGINAL AND YAPP R2P HEADS
carbon fiber/steel core/copper fire rings
HAND MADE BY BEST GASKET Co.
$145.00 each + ship
IN STOCK
513-724-9000
Carburetor Blank Off Plate
$14.25 Temporarily out of stock
#29447K - blank off plate - plated steel. 2pcs.
Use this plate and gasket to seal off
a "dummy" carb or when testing
one carb at a time.
A clean helpful tool.
$14.25 Temporarily out of stock
#29447K - blank off plate - plated steel. 2pcs.
Use this plate and gasket to seal off
a "dummy" carb or when testing
one carb at a time.
A clean helpful tool.
35.95 (3 pieces)
Phenolic Block
$35.95 - 3 pieces
Phenolic block is 1/4" thick and comes with 2 Stromberg carb gaskets.
This helps keep heat from traveling to the carburetor when using "hot spot" manifolds.
$35.95 - 3 pieces
Phenolic block is 1/4" thick and comes with 2 Stromberg carb gaskets.
This helps keep heat from traveling to the carburetor when using "hot spot" manifolds.
$5.00 each
Intake Manifold Gasket - R2P & ROOF101
$5.00 each
IN STOCK
Roof 101 Cyclone Adapter or Carburetor to manifold (NEED 3).
Riley 2 Port Intake (NEED 2)
Measures: Center to center of mount holes = 2-1/4", mount holes 3/8" dia.,
center hole 1-1/2" dia.
$5.00 each
IN STOCK
Roof 101 Cyclone Adapter or Carburetor to manifold (NEED 3).
Riley 2 Port Intake (NEED 2)
Measures: Center to center of mount holes = 2-1/4", mount holes 3/8" dia.,
center hole 1-1/2" dia.
$5.00 each
Roof 101 Cyclone Intake to rocker box each (NEED 4)
$5.00 each
IN STOCK
$5.00 each
IN STOCK
$12.50 each

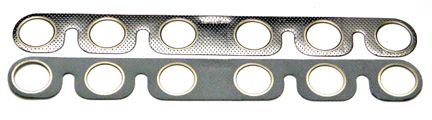

Exhaust - Intake Gasket
$12.50 each
One piece tin and fiber gasket works well with headers.
Can be cut for other applications.
Photo shows both sides.
$12.50 each
One piece tin and fiber gasket works well with headers.
Can be cut for other applications.
Photo shows both sides.
$15.00 set

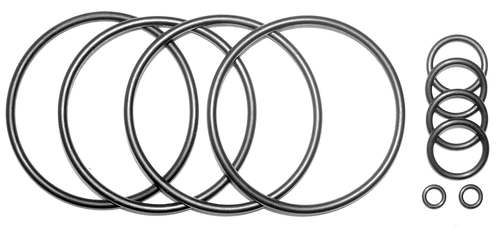

Roof 101 Cyclone OHV O-Ring set
$15.00
IN STOCK
10PCS High quality precision O-Ring kit to seal
the Rocker boxes to the head.
$15.00
IN STOCK
10PCS High quality precision O-Ring kit to seal
the Rocker boxes to the head.
$15.50 set

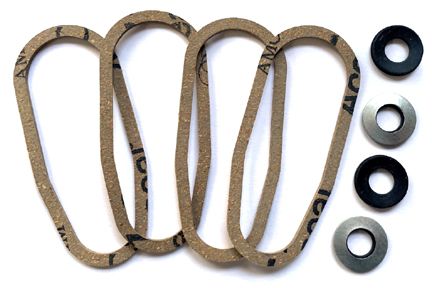

Roof 101 Cyclone OVAL Valve Cover gaskets
$15.50 - 4 piece set
Neoprene/Cork flat
IN STOCK
$15.50 - 4 piece set
Neoprene/Cork flat
IN STOCK
Questions? Call (513) 724-9000 or email [email protected]
Order: send an email (use the form above) with what you want along with your full name and billing/shipping address.
We will send back an invoice to pay from. . .
Or call our office (513) 724-0700 EST, USA
Order: send an email (use the form above) with what you want along with your full name and billing/shipping address.
We will send back an invoice to pay from. . .
Or call our office (513) 724-0700 EST, USA
Scalded Dog Speed Parts, 3860 Cain Run Rd,
Batavia OH 45103, USA .
Phone (513) 724-9000, EST. [email protected]
Batavia OH 45103, USA .
Phone (513) 724-9000, EST. [email protected]
ABOUT HEAD GASKETS:
Our Best Brand head gaskets
do not require "sealant" if the decks are flat, near-new, fresh, unscored and clean. Sealant is built into the gasket.
Name goes to up to sky. Start Torque at 25 pounds, using the sketch above, in numerical sequence and increase incrementally 5 pounds
at a time to a final torque of 55 pounds.
ALWAYS
re-torque to
55 FOOT POUNDS
a minimum of 3 times COLD.
NO Shortcuts. . .
from 4.0 CR to 8.25 CR
Run the engine with plain water,
to its normal running temperature
and allow to cool before re-torquing.
By the 2nd tightening, seepage, in most cases, should be gone.
After the 3rd cooling and retorque you should be ready to push
the engine and have fun.
Drain and fill with your choice of coolant.
NEVER lug the engine
(it creates very high temperatures).
Down-shift when high gear isn't enough power.
Attention - Warning:
Some cylinder heads
are actually stronger than the engine block.
After years of research concerning
gasketing and sealing of
Model "A" and "B" cylinder heads
it is now considered fact
that over torquing head bolts or nuts will:
Warp the cylinder bores.
Pull up metal around stud holes.
Lesson the integrity of the block's stud threads.
Effectively break the gasket seal.
(Many old-timers may disagree
but they usually are quite
good at replacing head gaskets.)
What type of gasket material is best to use?
There are several types of head gaskets available.
There are 3 types that show consistent failure
in engines with compression ratios over 6:1.
1) Copper sandwiched over composite.
2) Silicone impregnated composite (some with red silicone).
3) Solid gray and black composite (no steel core).
I do not have engineering data
to interpret the constant failure of these gaskets.
All I know is from
hundreds of reported of failures,
that these types
have a problem at compressions
over stock 4.2:1.
I sell and manage the sale of
hundreds of flatheads and overhead cylinder heads.
Without a dependable, long term, strong head gasket
my products would be worthless.
My cylinder heads have several special characteristics that improve gasketing.
Namely: overkill strength and super fine flat surfaces.
My heads are actually stronger than the block.
I only recommend Best (brand) composite GraphTite™
sandwiched over a steel core with steel compression rings.
Head gaskets sold on this page can be used without sealant.
Signed, Charlie Yapp.
BEST GASKET COMPANY
Makes up our very special cylinder head gaskets like this:
GraphTite™ consists of a Kevlar reinforced graphite facing material is mechanically bonded to both sides of a perforated steel core. This modern engineered, high-performance material is rated to a temperature of 1400 degrees-F. Steel fire rings are installed around the combustion chamber areas of the gasket.
GraphTite™ head gaskets have superb sealing characteristics, excellent torque retention, and hold up to the punishment dished out by high-performance engines – high quality all the way.
This gasket might be overkill for cruiser engines, but so what.
Extra reliability never hurts!
Installing GraphTite™ head gaskets; There are two trains of thought.
1) The preference of Scalded Dog Speed Parts is NOT using any sealant coatings if your head and block deck are new - fresh - and flat.
If your assembly is iffy then use a light coat of spray-on sealant like K & W Copper Coat or Permatex Copper Spray-A-Gasket.
Always re-torque, no shortcuts.
Always re-torque to 55# when engine is cold, three (3) times before hard driving.
NO shortcuts.
The number one "thing" that blows a head gasket
is a combination of high engine power/torque and too much heat.
This is the situation found when attempting to run
the engine up hill in third gear . . .
When you know, in your heart,
that it needed to be down shifted. . . . . Boom!
It also can happen in drag racing and hill climbs
with sudden powerful starts.
If you plan on pushing your engine (and want to get home) . . . get a backup. . . . Our special gasket box can hold up to three (3) head gaskets. Shipping in the USA averages $18.50 (subject to change) whether it is 1, 2 or 3 gaskets.
Buy a couple extras and save at least $33.00 in shipping.
Disclaimer:
As much as we try to be helpful, we do not have any control as to how your engine is used or built. We cannot warrant head gaskets after being installed and used.
These are good gaskets, installed and used properly should give excellent service.
[email protected]
do not require "sealant" if the decks are flat, near-new, fresh, unscored and clean. Sealant is built into the gasket.
Name goes to up to sky. Start Torque at 25 pounds, using the sketch above, in numerical sequence and increase incrementally 5 pounds
at a time to a final torque of 55 pounds.
ALWAYS
re-torque to
55 FOOT POUNDS
a minimum of 3 times COLD.
NO Shortcuts. . .
from 4.0 CR to 8.25 CR
Run the engine with plain water,
to its normal running temperature
and allow to cool before re-torquing.
By the 2nd tightening, seepage, in most cases, should be gone.
After the 3rd cooling and retorque you should be ready to push
the engine and have fun.
Drain and fill with your choice of coolant.
NEVER lug the engine
(it creates very high temperatures).
Down-shift when high gear isn't enough power.
Attention - Warning:
Some cylinder heads
are actually stronger than the engine block.
After years of research concerning
gasketing and sealing of
Model "A" and "B" cylinder heads
it is now considered fact
that over torquing head bolts or nuts will:
Warp the cylinder bores.
Pull up metal around stud holes.
Lesson the integrity of the block's stud threads.
Effectively break the gasket seal.
(Many old-timers may disagree
but they usually are quite
good at replacing head gaskets.)
What type of gasket material is best to use?
There are several types of head gaskets available.
There are 3 types that show consistent failure
in engines with compression ratios over 6:1.
1) Copper sandwiched over composite.
2) Silicone impregnated composite (some with red silicone).
3) Solid gray and black composite (no steel core).
I do not have engineering data
to interpret the constant failure of these gaskets.
All I know is from
hundreds of reported of failures,
that these types
have a problem at compressions
over stock 4.2:1.
I sell and manage the sale of
hundreds of flatheads and overhead cylinder heads.
Without a dependable, long term, strong head gasket
my products would be worthless.
My cylinder heads have several special characteristics that improve gasketing.
Namely: overkill strength and super fine flat surfaces.
My heads are actually stronger than the block.
I only recommend Best (brand) composite GraphTite™
sandwiched over a steel core with steel compression rings.
Head gaskets sold on this page can be used without sealant.
Signed, Charlie Yapp.
BEST GASKET COMPANY
Makes up our very special cylinder head gaskets like this:
GraphTite™ consists of a Kevlar reinforced graphite facing material is mechanically bonded to both sides of a perforated steel core. This modern engineered, high-performance material is rated to a temperature of 1400 degrees-F. Steel fire rings are installed around the combustion chamber areas of the gasket.

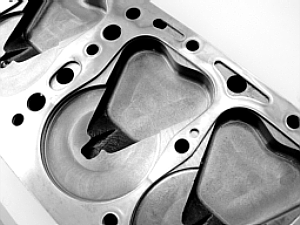

GraphTite™ head gaskets have superb sealing characteristics, excellent torque retention, and hold up to the punishment dished out by high-performance engines – high quality all the way.
This gasket might be overkill for cruiser engines, but so what.
Extra reliability never hurts!
Installing GraphTite™ head gaskets; There are two trains of thought.
1) The preference of Scalded Dog Speed Parts is NOT using any sealant coatings if your head and block deck are new - fresh - and flat.
If your assembly is iffy then use a light coat of spray-on sealant like K & W Copper Coat or Permatex Copper Spray-A-Gasket.
Always re-torque, no shortcuts.
Always re-torque to 55# when engine is cold, three (3) times before hard driving.
NO shortcuts.
The number one "thing" that blows a head gasket
is a combination of high engine power/torque and too much heat.
This is the situation found when attempting to run
the engine up hill in third gear . . .
When you know, in your heart,
that it needed to be down shifted. . . . . Boom!
It also can happen in drag racing and hill climbs
with sudden powerful starts.
If you plan on pushing your engine (and want to get home) . . . get a backup. . . . Our special gasket box can hold up to three (3) head gaskets. Shipping in the USA averages $18.50 (subject to change) whether it is 1, 2 or 3 gaskets.
Buy a couple extras and save at least $33.00 in shipping.
Disclaimer:
As much as we try to be helpful, we do not have any control as to how your engine is used or built. We cannot warrant head gaskets after being installed and used.
These are good gaskets, installed and used properly should give excellent service.
[email protected]
